3U VPX Zynq Ultrascale+ SDR Modules and Development Systems 3U VPX Zynq Ultrascale+ SDR Modules and Development Systems

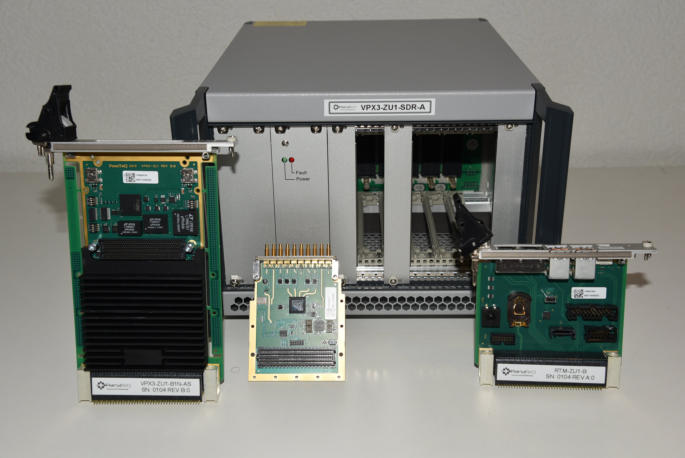

PanaTeQ’s VPX3-ZU1B-SDR-A is a 3U VPX System for SDR Development based on the on the VPX3-ZU1B Zynq Ultrascale+ module and AD9371 based FMC. The VPX3-ZU1B-SDR-A system kit contains the following components. VPX3-ZU1B-B1M-AS: 3U OpenVPX Zynq Ultrascale+ ZU9EG with FMC site. RTM-ZU1-A: Rear Transition Module for the VPX3-ZU1B. FMC-ZU1RF-A-W1A-AS: FMC Wideband RF Transceiver Analog Devices AD9371. 4U Desktop Chassis: 5 slots 3U VPX Full-Mesh backplane and 250W PSU.
+
+
+
3U VPX Desktop Chassis
PanaTeQ’s VPX3-ZU1B-SDR-B is a 3U VPX System for SDR Development based on the on the VPX3-ZU1 Zynq Ultrascale+ module and AD9375 based FMC. The VPX3-ZU1B-SDR-B system kit contains the following components. VPX3-ZU1B-B1M-AS: 3U OpenVPX Zynq Ultrascale+ ZU9EG with FMC site. RTM-ZU1-A: Rear Transition Module for the VPX3-ZU1B. FMC-ZU1RF-B-W1A-AS: FMC Wideband RF Transceiver Analog Devices AD9375. 4U Desktop Chassis: 5 slots 3U VPX Full-Mesh backplane and 250W PSU.
VPX3-ZU1B-SDR-A/B/C/D Product Brief 3U OpenVPX Xilinx Zynq Utrascale+ & Analog Devices AD9371/AD9375/ADRV9009/ADRV9029 RF Transceivers Air Cooled Ruggedized and Conduction Cooled
VPX3-ZU1B-SDR Air Cooled System Development.
PanaTeQ’s VPX3-ZU1B-SDR-C is a 3U VPX System for SDR Development based on the on the VPX3-ZU1B Zynq Ultrascale+ module and ADRV9009 based FMC. The VPX3-ZU1B-SDR-C system kit contains the following components. VPX3-ZU1-B1M-AS: 3U OpenVPX Zynq Ultrascale+ ZU9EG with FMC site. RTM-ZU1-A: Rear Transition Module for the VPX3-ZU1B. FMC-ZU2RF-A-W1B-AS: FMC Wideband RF Transceiver Analog Devices ADRV9009. 4U Desktop Chassis: 5 slots 3U VPX Full-Mesh backplane and 250W PSU.
PanaTeQ’s VPX3-ZU1B-SDR-D is a 3U VPX System for SDR Development based on the on the VPX3-ZU1B Zynq Ultrascale+ module and ADRV9029 based FMC. The VPX3-ZU1B-SDR-D system kit contains the following components. VPX3-ZU1B-B1M-AS: 3U OpenVPX Zynq Ultrascale+ ZU9EG with FMC site. RTM-ZU1-A: Rear Transition Module for the VPX3-ZU1B. FMC-ZU3RF-A-W1A-AS: FMC Wideband RF Transceiver Analog Devices ADRV9029. 4U Desktop Chassis: 5 slots 3U VPX Full-Mesh backplane and 250W PSU.
PanaTeQ’s VPX3-SDR-A/B is a 3U VPX SDR SOSA RF Aligned module based on Zynq Ultrascale+ MPSOC coupled with one or two ADRV9029 RF Transceivers connected to the Front panel or Backplane compliant to VITA 67.3
+
+
+
+
+
+
