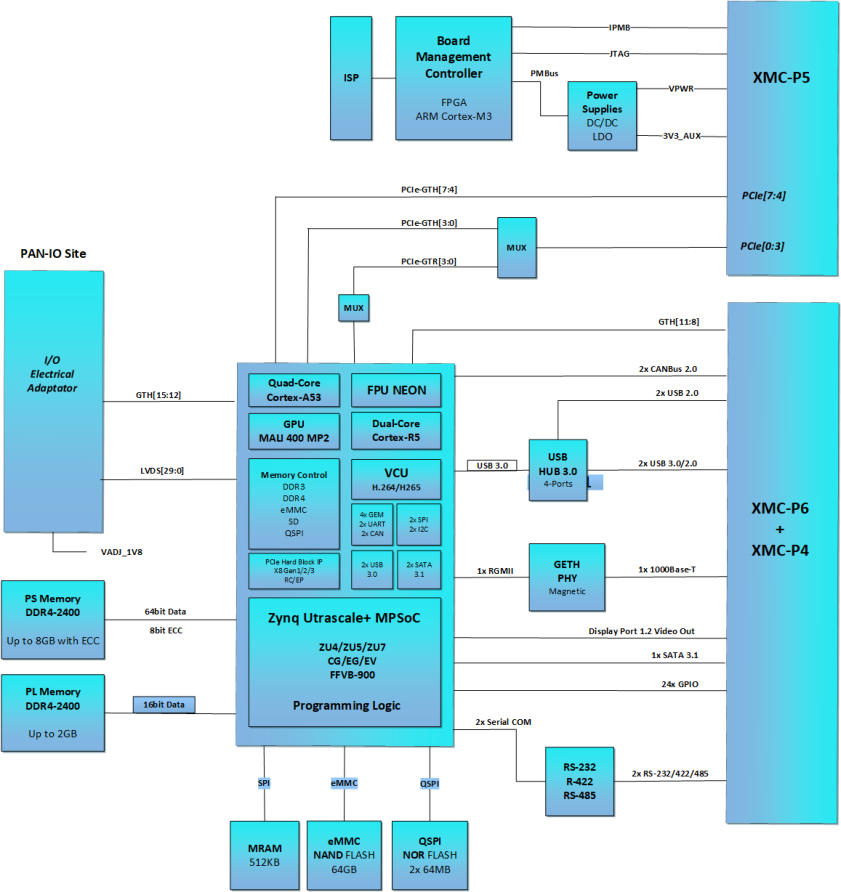

PanaTeQ’s XMC-ZU1 is a XMC module based on the Zynq UltraScale+ MPSoC device from Xilinx. The Zynq UltraScale+ integrates a Quad-core ARM Cortex-A53 based Application Processing Unit (APU), a Dual-core ARM Cortex-R5 based Real-Time Processing Unit (RPU), a ARM Mali based Graphic Processing Unit (GPU), a H.264/H.265 Video Codec Unit (VCU) , two PCIe Gen2/3 Hard Blocks (PCIe) and an UltraScale+ Programmable Logic (PL) in a single device.   It also includes on-chip memory, external memory interfaces, and a rich set of  peripheral connectivity interfaces.  The board can be equipped with a ZU4EV/ZU5EV/ZU7EV FBVB900 device tightly coupled up to 8GB of 64-bit with 8-bit ECC of DDR4-2400 Processing Memory. Up to 2GB 16-bit of DDR4-2400 is available as the Programmable Logic Memory, allowing data streaming applications such as video CODEC and signal processing.  For frond-end I/O  interface, an on-board PAN-IO site with 60 SE I/O (30 Diff Pairs) and up to 4 MGT, allowing a wide range of applications such as Software Defined Radio, EW/ISR Systems, Video Camera Processing, Advanced Multi-Axes Motors controller, Multi-Gig Ethernet communications, LIDAR/RADAR/SONAR. A large number of Zynq Ultrascale+ peripherals are available on XMC connectors : 1x ETH 1000B-X/SGMII, 1x ETH 1000B-T, 2x USB 3.0/2.0, 2x USB 2.0, 1x SATA 3.1, 2x CAN-2.0B, 2x RS-232/422/485, 4x MGT , 20x GPIO, Video Out Display Port 1.2.
